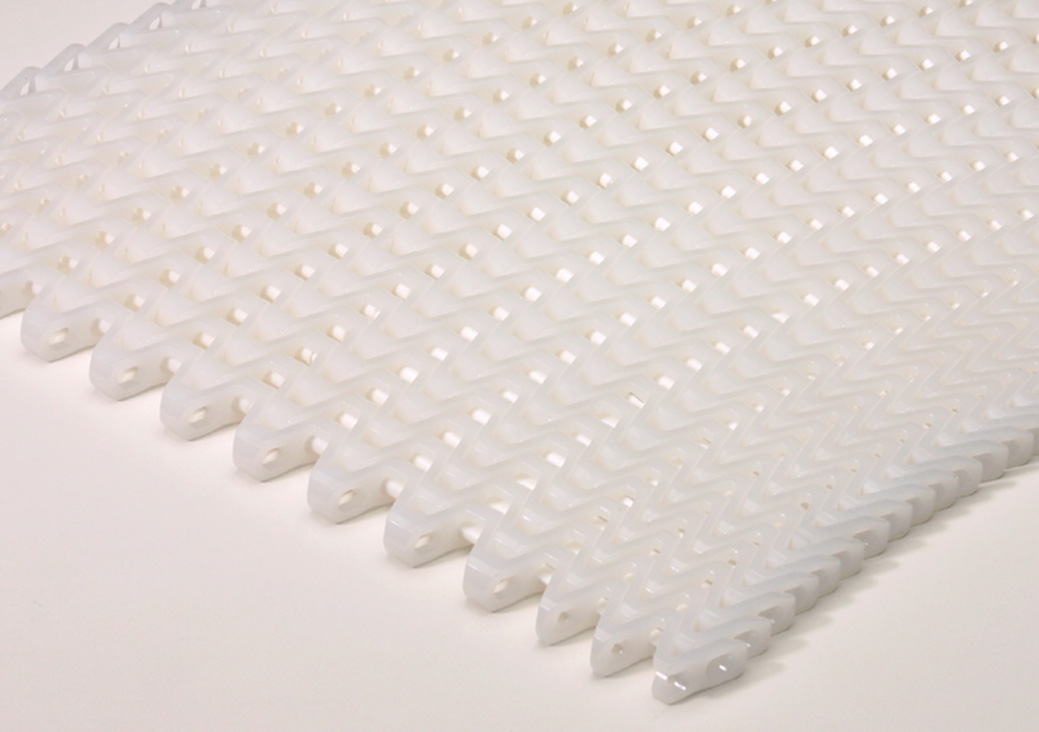

RS511 (Tight Turn Radius Flush Grid)

Name: RS511 (Tight Turn Radius Flush Grid)
Brand: HABASIT
Availability: InStock

Consultar precio

MPN: RS511 (Tight Turn Radius Flush Grid) Marca: HABASIT Categoría: Bandas modulares de plástico y cadenas transportadoras Subcategoría: Bandas modulares de plástico Familia: 0.5" RS Radius RS511/RS515 Subfamilia: Componente genérico Habasit

Belt Type RS511

Diseño Tight Turn Radius FG

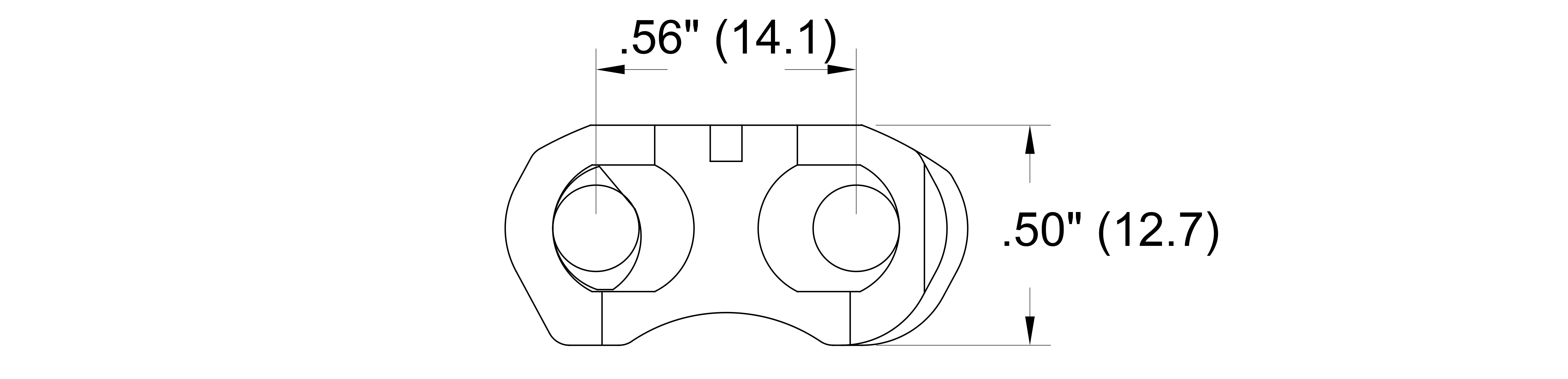

Nominal Pitch 14.5

Anchura Standard range of belt widths in increments of 1" (25.4mm) starting from 12" (304.8mm) Maximum recommended belt width is 36" (914.4mm). Material selection may affect belt width — please contact your local partner for actual dimensions.

Espesor 12.7 mm / 0.5 Pulg. 0.5 Pulg.

Tipo De Varilla (datos De La Varilla) Tapered Pin

Diámetro (datos De La Varilla) 4.8 mm / 0.188 Pulg. 0.188 Pulg.

Bisagra (datos De La Varilla) Closed hinge

Minimum (idle Roller) 19 mm / 0.75 Pulg. 0.75 Pulg.

RS511 (Tight Turn Radius Flush Grid) Descargar

RS511 (Tight Turn Radius Flush Grid)-standard-installation-flyer Descargar

RS511 (Tight Turn Radius Flush Grid) Descargar
