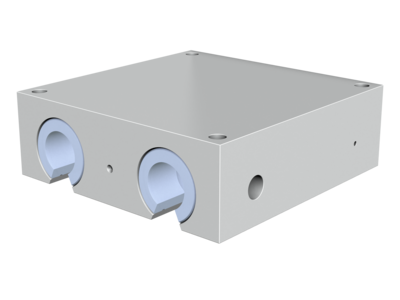

Imagen 1 de PAGBAO30-PP-AS
Imagen 2 de PAGBAO30-PP-AS
Imagen 3 de PAGBAO30-PP-AS
Imagen 4 de PAGBAO30-PP-AS

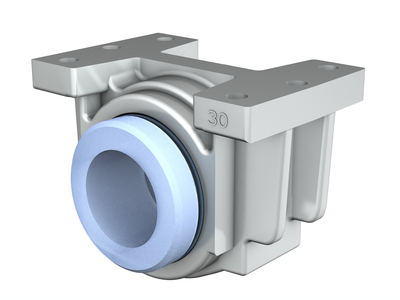

Imagen 1 de PAGBAO30-PP-AS-filter
Imagen 2 de PAGBAO30-PP-AS-filter
Imagen 3 de PAGBAO30-PP-AS-filter
Imagen 4 de PAGBAO30-PP-AS-filter

PAGBAO30-PP-AS

Consultar precio

Unidad de rodamiento lineal de fricción

MPN: PAGBAO30-PP-AS Marca: Ina Categoría: Linear Motion Subcategoría: Sistemas de guiado por eje Familia: Linear Plain Bearing Units Subfamilia: Standard range
Linear plein bearing and housing unit; open design, sealed on all sides, with relubrication facility
α 54°
a3 14 mm
B 84 mm
b2 13,6 mm
FW 30 mm
H 63,5 mm
jB 68 mm
JL 45 mm
L 68 mm
L4 60 mm
Tol JB - 0,2 mm
Tol JL - 0,2 mm
a5 42 mm
w 3 mm
N1 6,8 mm
N3 11 mm
H2 35 mm
L5 48 mm
H6 8,7 mm
K5 M6
K8 NIPA2
Tol H6 - 0,5 mm
M Wmax 4 Nm
TolL h12
≈m 0,43 kg
1147932 Descargar
