Dimensiones (an. x l. x al.)
232 x 199 x 102 mm
Aplicaciones recomendadas
For installation either indoor or outdoor, including harsh environments (dust, rain, snow, wind, heat, cold, etc)
Características especiales
Ethernet Input Power: 37 - 57 VDC, 25 W min. power rating
Contenido

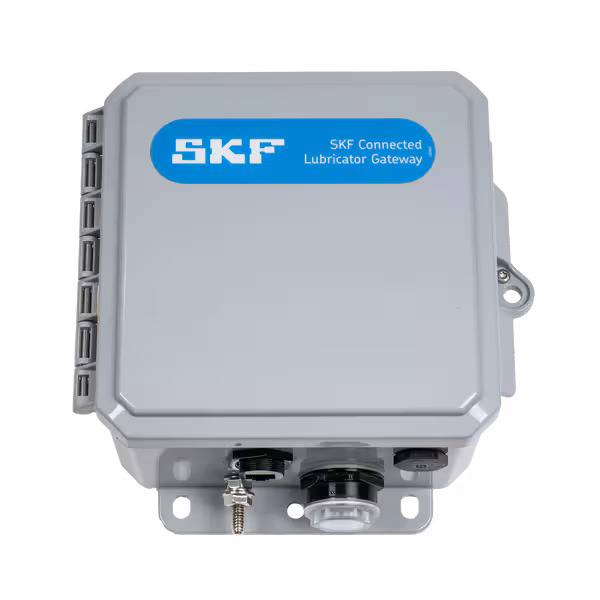

Gateway
Grado de protección (IP)
IP 67
Humedad relativa
20 to 90 %, non-condensing
Rango de temperatura ambiente
-40 – 70 °C °C
Temperatura de almacenamiento recomendada
-40 – 85 °C °C
Fuente de alimentación
Ethernet port
Adaptador de corriente
Seperate PoE adapter available
Longitud del cable
1 830 mm
Amperaje (máx.)
0.7 A
Cloud interface
Webapp: lubrication-cloud.skf.com
Communication security
Encrypted
Data connection to Lubrication Cloud platform
GSM 4G, 3FF micro sim card pre-installed, not exchangeable ml/d
Data frequency range (LoRa)
902 – 928 MHz MHz
Data transfer protocol between lubricator and gateway
Private license free long range wide area network (LoRa)

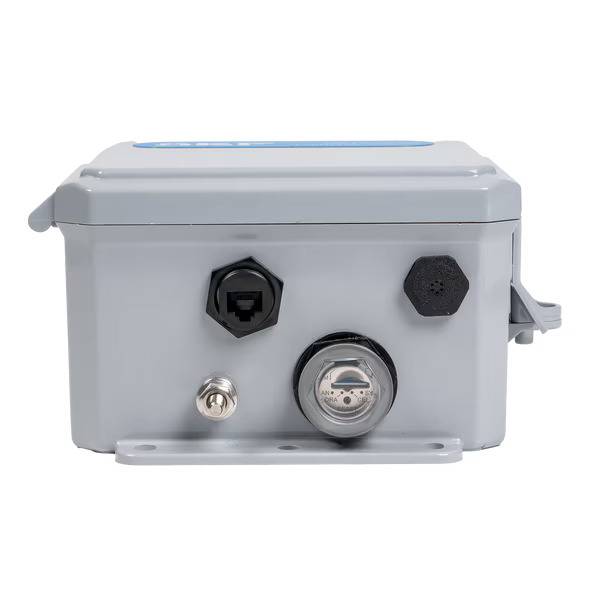

Indicador LED
4 LED's indicating the connectivity status (Ethernet (LAN), LoRa, system, cellular)
Max. recommended distance to lubricator
300 m
Number of connected lubricators (max.)
Virtually unlimited
Rango de suministro de potencia
37 – 57 V V
Suitablility for Regions
North and Central America
