Dimensiones (an. x l. x al.)
165 x 133 x 45 mm
Aplicaciones recomendadas
For installation either indoor or in a well sealed closed cabinet

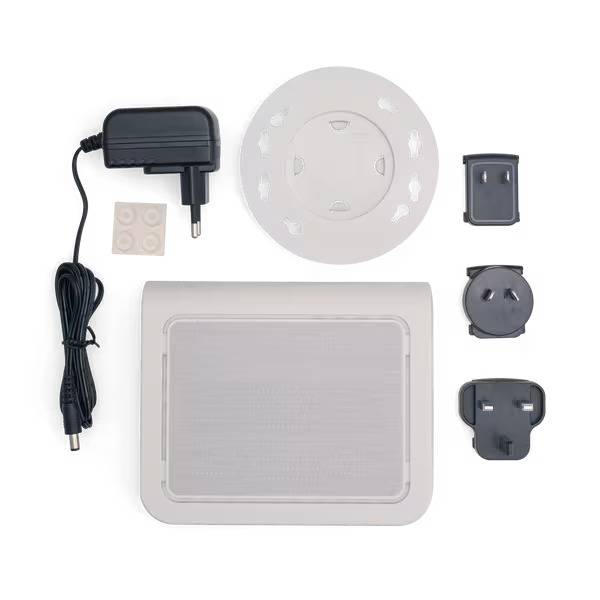

Contenido
Gateway
Grado de protección (IP)
IP 65
Humedad relativa
20 to 90 %, non-condensing
Rango de temperatura ambiente
-10 – 60 °C °C
Temperatura de almacenamiento recomendada
0 – 40 °C °C
Fuente de alimentación
Mains
Adaptador de corriente
100-240 V, 50/60 Hz, plugs for EU, US, UK, AU included
Longitud del cable
1 520 mm
Amperaje (máx.)
0.4 A
Cloud interface
Webapp: lubrication-cloud.skf.com
Communication security
Encrypted
Data connection to Lubrication Cloud platform
GSM 4G, 3FF micro sim card pre-installed, not exchangeable ml/d
Data frequency range (LoRa)
915 – 928 MHz MHz
Data transfer protocol between lubricator and gateway
Private license free long range wide area network (LoRa)
Indicador LED
3 LED's indicating the connectivity status (status, LoRa, cellular)
Max. recommended distance to lubricator
300 m
Number of connected lubricators (max.)
Virtually unlimited
Rango de suministro de potencia
100 – 240 V V
Suitablility for Regions
Australia, NZ, and South America
