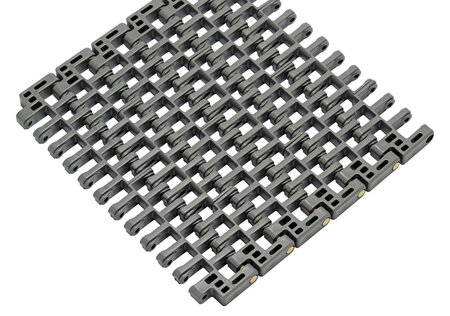

Imagen 1 de SE620 (Straight Edge Flush Grid)
Imagen 2 de SE620 (Straight Edge Flush Grid)
Imagen 3 de SE620 (Straight Edge Flush Grid)

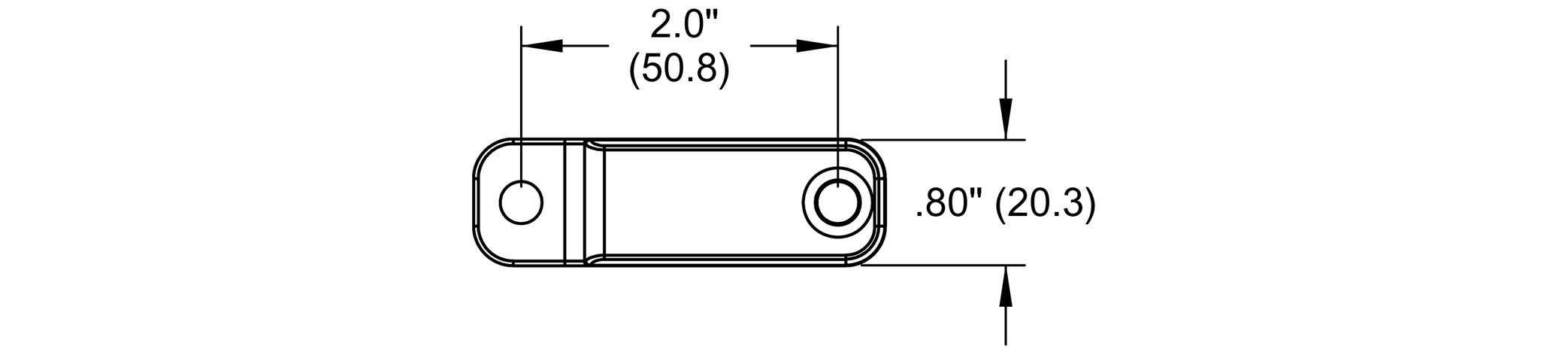

Imagen 4 de SE620 (Straight Edge Flush Grid)
Imagen 5 de SE620 (Straight Edge Flush Grid)
Imagen 1 de SE620 (Straight Edge Flush Grid)-filter
Imagen 2 de SE620 (Straight Edge Flush Grid)-filter
Imagen 3 de SE620 (Straight Edge Flush Grid)-filter
Imagen 4 de SE620 (Straight Edge Flush Grid)-filter
Imagen 5 de SE620 (Straight Edge Flush Grid)-filter

SE620 (Straight Edge Flush Grid)

Consultar precio

MPN: SE620 (Straight Edge Flush Grid) Marca: HABASIT Categoría: Bandas modulares de plástico y cadenas transportadoras Subcategoría: Bandas modulares de plástico Familia: 2.0" RS Straight SP620/SE620 Subfamilia: Componente genérico Habasit
Belt Type SE620
Diseño Flush Grid
Nominal Pitch 50.8
Anchura Standard range of belt widths in increments of 3" (76.2mm) starting from 7.25" (184.2mm) Non standard widths are offered in increments of 1" (25.4mm) starting from 7.25" (184.2mm) upon request. Material selection may affect belt width — please contact your local partner for actual dimensions.
Espesor 20 mm / 0.79 Pulg. 0.79 Pulg.
Tipo De Varilla (datos De La Varilla) Snap Fit
Diámetro (datos De La Varilla) 6.4 mm / 0.25 Pulg. 0.25 Pulg.
Bisagra (datos De La Varilla) Closed hinge
Minimum (idle Roller) 89 mm / 3.50 Pulg. 3.50 Pulg.
SE620 (Straight Edge Flush Grid) Descargar
SE620 (Straight Edge Flush Grid) Descargar
