PAGBAO40-PP-AS

Consultar precio

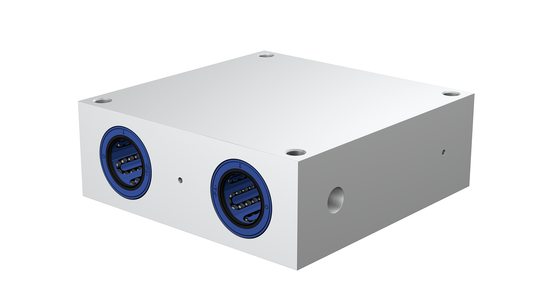

Unidad de rodamiento lineal de fricción

MPN: PAGBAO40-PP-AS Marca: Ina Categoría: Linear Motion Subcategoría: Sistemas de guiado por eje Familia: Linear Plain Bearing Units Subfamilia: Standard range
Linear plein bearing and housing unit; open design, sealed on all sides, with relubrication facility
α 54°
a3 18 mm
B 108 mm
b2 18,2 mm
FW 40 mm
H 82,4 mm
jB 86 mm
JL 58 mm
L 80 mm
L4 78 mm
Tol JB - 0,2 mm
Tol JL - 0,2 mm
a5 54 mm
w 4 mm
N1 9,2 mm
N3 15 mm
H2 45 mm
L5 56 mm
H6 11 mm
K5 M8
K8 NIPA2
Tol H6 - 0,5 mm
M Wmax 5 Nm
TolL h12
≈m 0,91 kg
1151434 Descargar
