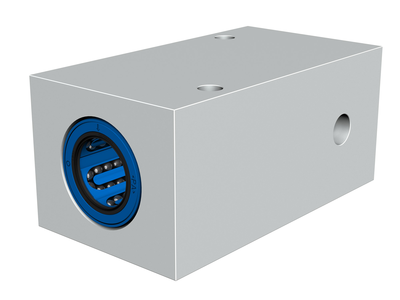

Imagen 1 de PAGBAO25-PP-AS
Imagen 2 de PAGBAO25-PP-AS
Imagen 3 de PAGBAO25-PP-AS
Imagen 4 de PAGBAO25-PP-AS

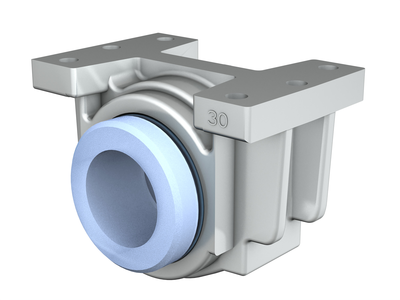

Imagen 1 de PAGBAO25-PP-AS-filter
Imagen 2 de PAGBAO25-PP-AS-filter
Imagen 3 de PAGBAO25-PP-AS-filter
Imagen 4 de PAGBAO25-PP-AS-filter

PAGBAO25-PP-AS

Consultar precio

Unidad de rodamiento lineal de fricción

MPN: PAGBAO25-PP-AS Marca: Ina Categoría: Linear Motion Subcategoría: Sistemas de guiado por eje Familia: Linear Plain Bearing Units Subfamilia: Standard range
Linear plein bearing and housing unit; open design, sealed on all sides, with relubrication facility
α 60°
a3 13 mm
B 74 mm
b2 12,5 mm
FW 25 mm
H 56 mm
jB 60 mm
JL 40 mm
L 58 mm
L4 54 mm
Tol JB - 0,2 mm
Tol JL - 0,2 mm
a5 37 mm
w 3 mm
N1 5,7 mm
N3 10 mm
H2 30 mm
L5 40 mm
H6 7,8 mm
K5 M5
K8 NIPA1
Tol H6 - 0,5 mm
M Wmax 3 Nm
TolL h12
≈m 0,31 kg
1147885 Descargar
