PAGBAO20-PP-AS

Consultar precio

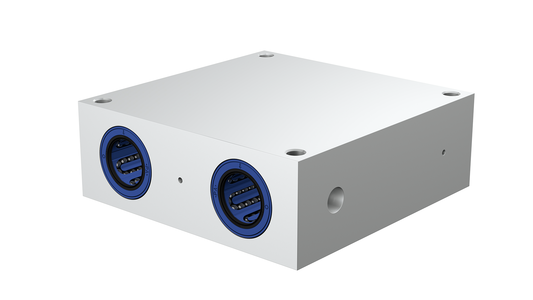

Unidad de rodamiento lineal de fricción

MPN: PAGBAO20-PP-AS Marca: Ina Categoría: Linear Motion Subcategoría: Sistemas de guiado por eje Familia: Linear Plain Bearing Units Subfamilia: Standard range
Linear plein bearing and housing unit; open design, sealed on all sides, with relubrication facility
α 60°
a3 11 mm
B 60 mm
b2 10 mm
FW 20 mm
H 44,5 mm
jB 45 mm
JL 32 mm
L 45 mm
L4 42 mm
Tol JB - 0,15 mm
Tol JL - 0,15 mm
a5 30 mm
w 2,5 mm
N1 4,7 mm
N3 8 mm
H2 25 mm
L5 28 mm
H6 6,7 mm
K5 M4
K8 NIPA1
Tol H6 - 0,5 mm
M Wmax 1,5 Nm
TolL h12
≈m 0,16 kg
1147882 Descargar
