KRV19-SK-PP

Consultar precio

Rodillo de levas

MPN: KRV19-SK-PP Marca: Ina Categoría: Rodamientos, casquillos de fricción Subcategoría: Rodillos de apoyo y de levas Familia: Rodillos de apoyo con guía axial Subfamilia: KRV

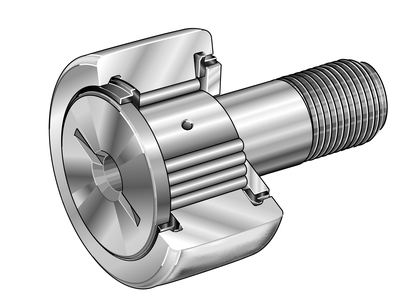

Stud type track rollers KRV..-SK-PP-A, single row needle roller bearings with particularly thick-walled outer ring, full complement needle roller set and with a solid roller stud with fixing thread and a mounting aid, axial guidance of outer ring is provided by the plastic axial plain washers, contact flange and contact washer, three-stage sealing by plastic axial plain washer on both sides, without eccentric collar, assembling aid hexagonal socket only on the flange side end face, no relubrication facility
≈m 29 g
Engrasador a presión NIPA1

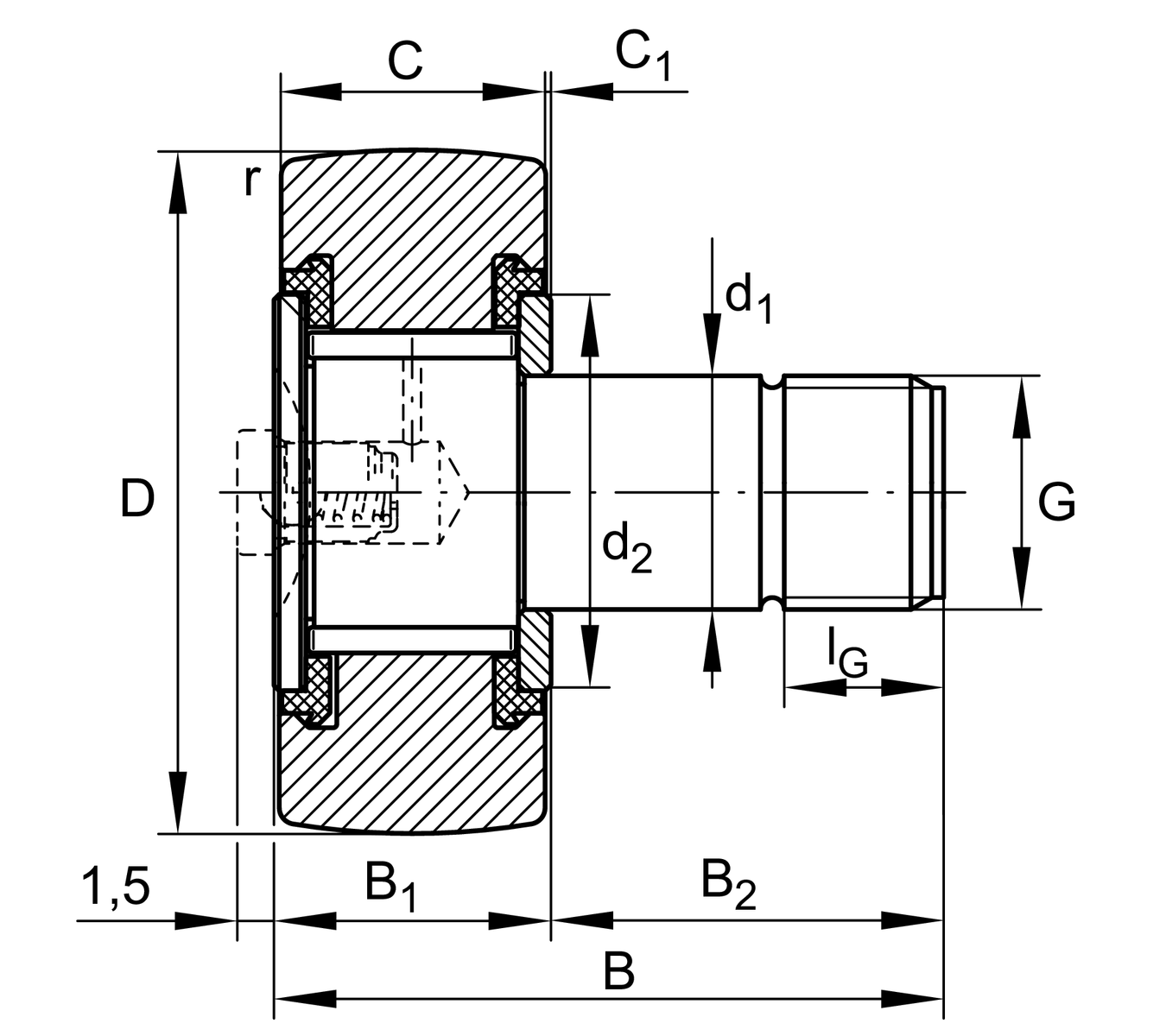

B 32 mm
D 19 mm
d1 8 mm
Rmin 0,15 mm
D2 15 mm
B1 12,2 mm
b2 20 mm
C 11 mm
C0r w 8.100 N
C1 0,6 mm
Cr w 5.400 N
Cur w 1.190 N
G M8
IG 10 mm
MA 8 Nm
w 4 mm
nD G 3.100 1/min
